  Overbrenging
Categorie Adly / Rocky / Exploded views
Datum van plaatsing 23-10-2005 15:22
Geplaatst door Nick

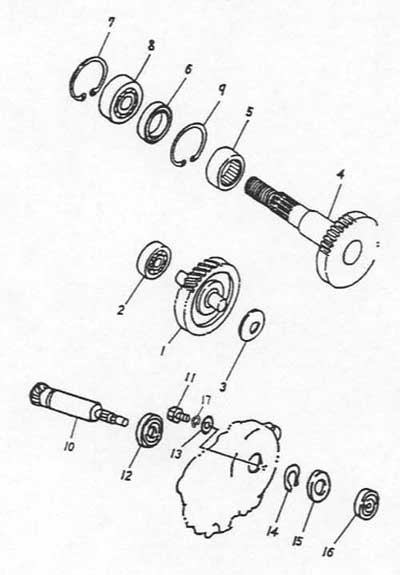

Exploded view overbrenging Adly Rocky



01 Main Axle Comp
02 Radial Ball Bearing
03 Plain Washer
04 Drive Axle
05 Needle Bearing
06 Oil Seal
07 Internal Cir Clip
08 Radial Ball Bearing
09 Internal Cir Clip
10 Primary Drive Gear
12 Radial Ball Bearing
14 External Circlip
15 Oil Seal
16 Radial Ball Bearing
